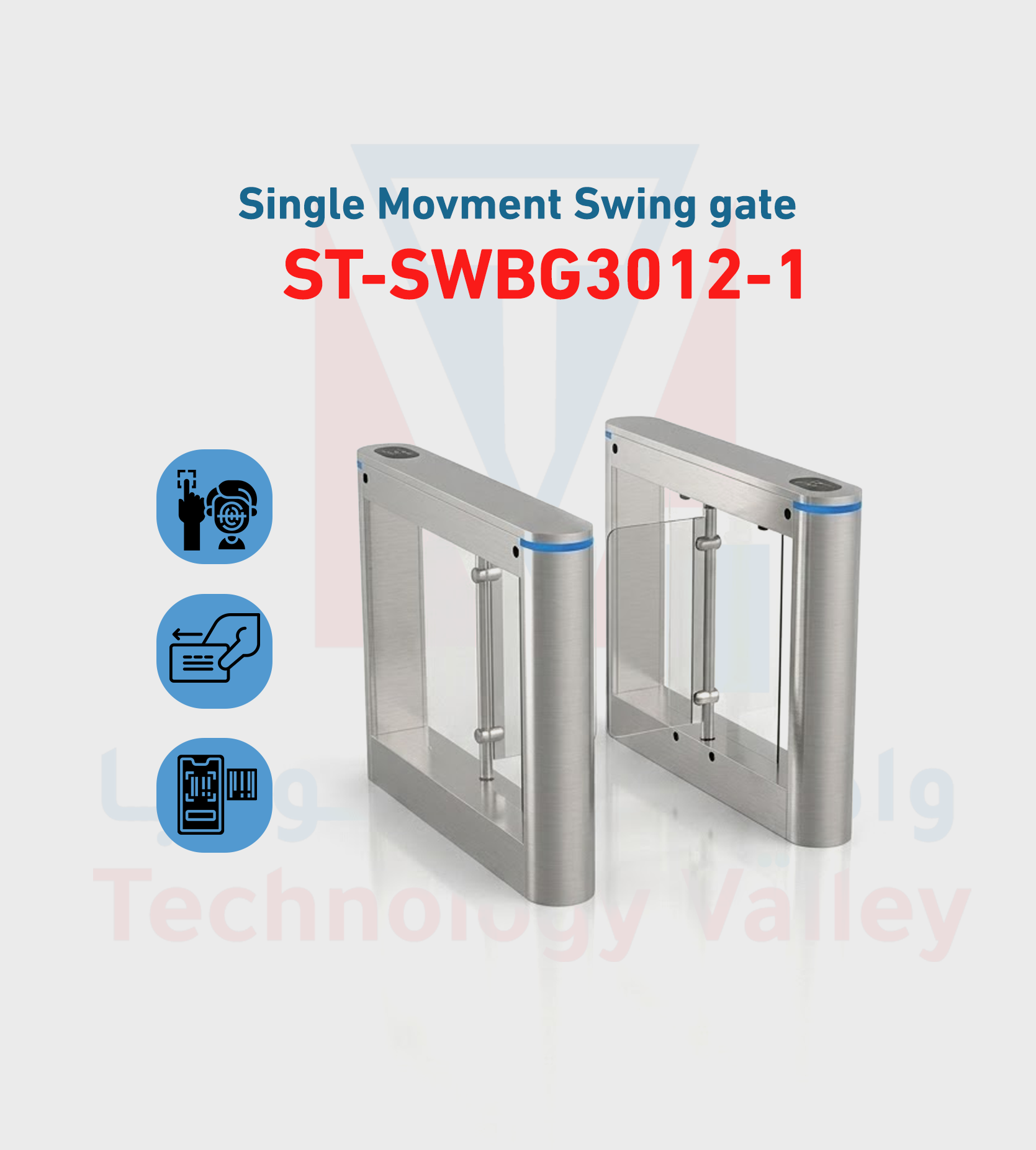

Smart Swing Speed Gate model ST-SWBG3012-1
he Smart Speed Gate is a high-tech access management system designed for intelligent control of pedestrian entry in commercial buildings and offices. Integrating mechanical, electronic, and microprocessor control technologies, it ensures safe, smooth, and fast access with a capacity of up to 55 people per minute.
Product Specifications
| Specification | Details |
| Housing Material | Stainless Steel |
| Gate Type | Swing Gate |
| Drive Motor | DC24V Servo Motor |
| Channel Width | 500 mm to 1200 mm |
| Infrared Sensors | 6 pairs standard (4 to 18 pairs optional) |
| Passing Speed | 40 – 55 persons/min |
| Opening/Closing Speed | Adjustable to 0.5s or more |
| Communication Interface | RS485 |
| Power Dissipation | 40W – 100W |
| Control / Motion Mode | Automatic / Double Motion / Indoor Working Environment |
| Input Signal | Passive contact signal (300ms ~ 500ms) |
| Dimensions (Customization) | 1400 × 120 × 1000 m |
