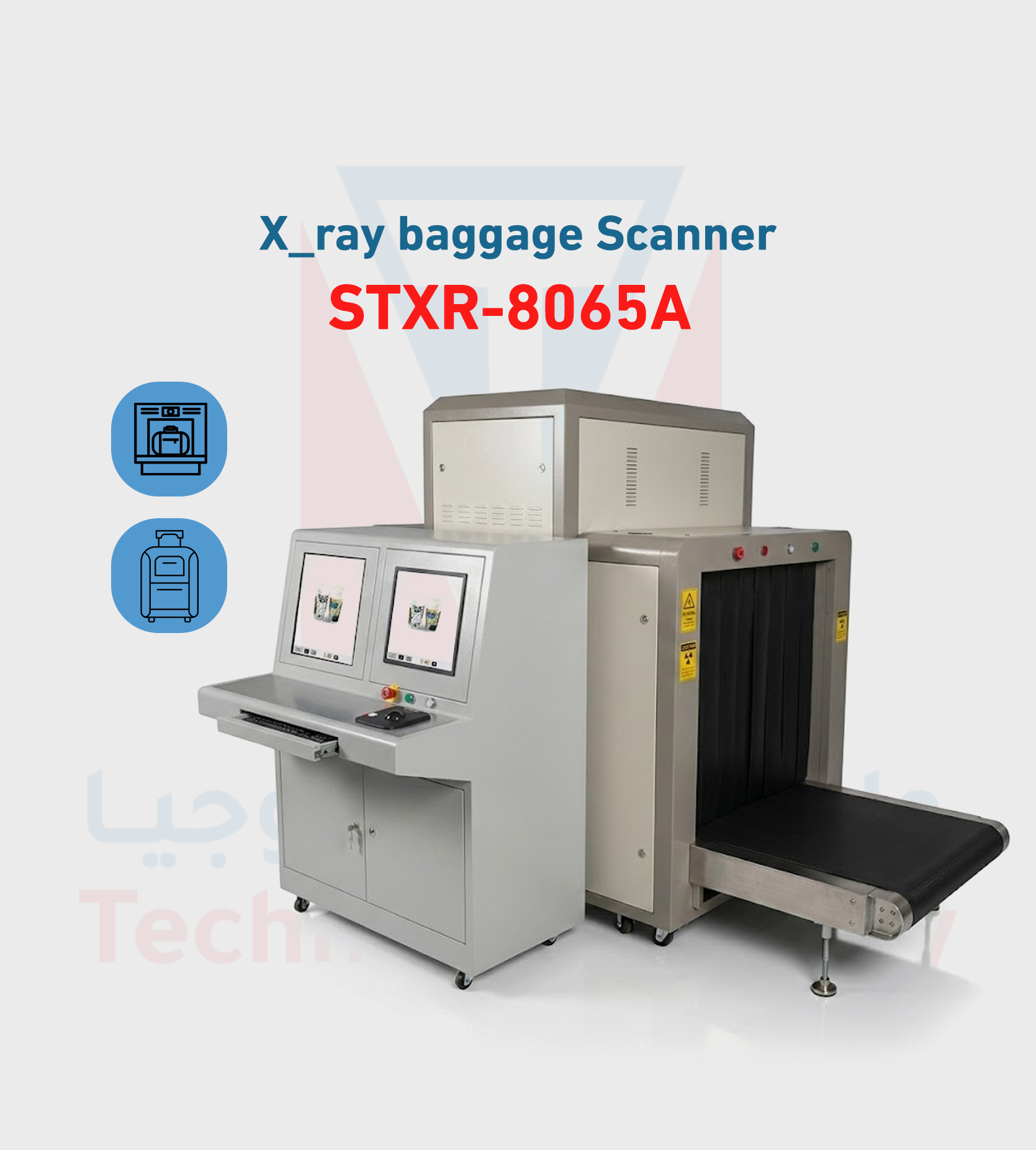

The STXR-8065A is presented in the available matched Smart Techo product literature as a single-energy X-ray inspection system for briefcases, carry-on baggage and small cargo parcels. It is a baggage and parcel inspection system; it is not a medical X-ray device, a people scanner, an under-vehicle system or a metal detector.
Use the model number as the starting point, not as proof of the final supplied configuration. The written quotation should identify the legal manufacturer and product brand separately, exact model, current datasheet revision, manufacturing year, country of origin and nameplate details for the unit being offered.
Electrical compatibility notice: the available matched datasheet lists AC 220 V ±10%, 60 Hz ±5%. Bahrain Electricity and Water Authority regulations state a 400/230 V, 50 Hz ±2% supply. A current model-specific document and unit nameplate confirming a suitable 50 Hz configuration are required before supply, installation or commissioning in Bahrain. This page does not claim that the currently documented 60 Hz configuration is Bahrain-ready.
Suitability depends on the items being screened, the expected workflow and the physical site. Before selecting the system, document:
An item should not be assumed to fit merely because its dimensions are smaller than the stated tunnel opening. Allowance may be needed for lead curtains, conveyor position, irregular shapes and safe handling. Confirm representative item fit and the operating workflow before ordering.
The following values are transcribed from the available model-matched Smart Techo document. The quotation must confirm that the current supplied unit has the same configuration and provide the applicable dated document.
| Item | Datasheet-stated information | Quotation check |
|---|---|---|
| Model | STXR-8065A | Match the model and nameplate on the offered unit. |
| System type | Single-energy X-ray inspection system | Confirm the supplied energy and generator configuration. |
| Stated item types | Briefcases, carry-on baggage and small cargo parcels | Check representative items and the actual operating workflow. |
| Tunnel opening | 805 × 655 mm, width × height | Confirm usable clearance and item-handling limits. |
| Conveyor | 0.22 m/s, listed as adjustable; maximum load 250 kg | Confirm settings, load conditions and acceptance test. |
| Display and image handling | 19-inch LCD; black-and-white and pseudo-colour display; automatic saving is listed | Confirm workstation, storage, export, retention and software licence. |
| Equipment dimensions | 3030 × 1120 × 1620 mm, L×W×H | Add service access, operator space, tables and safe clearance. |
| Listed electrical input | AC 220 V ±10%, 60 Hz ±5%; maximum power 0.8 kW | Not confirmed for Bahrain’s 50 Hz supply. Require model-specific written evidence. |
Technical reference reviewed: the available Smart Techo STXR-8065A single-energy datasheet. Request the current model-specific document with the written quotation; do not rely on the available web copy alone for procurement.
| Quotation item | Confirm in writing |
|---|---|
| Product identity | Legal manufacturer and product brand, exact model, manufacturing year, country of origin and nameplate details. |
| Bahrain electrical configuration | A model-specific 230 V, 50 Hz-compatible configuration, current nameplate, protection, isolation, earthing and UPS requirements. |
| Imaging and safety evidence | Legible performance, dose and leakage units, test conditions, model identification, issuer and scope. No Bahrain compliance is implied by a generic statement. |
| Operator workstation | Current supported operating system, licence, monitor, controls, keyboard, storage, export, networking and security-update responsibility. |
| Included equipment | Console, monitor, roller tables, ramps, UPS, cables, manuals, test pieces, tools, initial spare parts and optional accessories. |
| Project services and support | Delivery, positioning, assembly, commissioning, acceptance testing, training, warranty, maintenance, response process and spare-parts availability. |
Important: do not assume automatic detection of explosives, narcotics or another material, airport approval, compliance with a named standard or compatibility with an existing security platform unless the exact feature, test scope and model-specific evidence are supplied and verified.
A site assessment should check the equipment and operator footprint, delivery path, floor loading, service access, conveyor working height, electrical supply, earthing, isolation, UPS requirement, ventilation, temperature, humidity and dust conditions against the current manufacturer documentation.
The quotation should state who is responsible for unloading, positioning, assembly, electrical work, commissioning and acceptance testing. Where roller tables or other accessories are required, include their dimensions and load ratings in the layout.
Bahrain’s National Portal lists a customs-clearance approval service for radiation-emitting devices. The published requirements include technical information and the applicable importer and end-user licences or permits. Requirements can depend on the device and project.
Before ordering or operating the system, verify the current import, use, facility, operator and documentation requirements directly with the competent authority, and state in the quotation which party provides the technical file and completes each step. This page is procurement guidance, not regulatory or legal advice.
The product price and stock information displayed on this page are the store’s current commercial fields. They do not define an installed-project scope. A written quotation should confirm availability for the requested quantity and itemise VAT, delivery, unloading, installation, electrical work, accessories, training, documentation, warranty, maintenance, approval responsibilities and lead time.
Compare the X-ray and UVSS product range using a matched document for each model. You may also review the STXR-100100A X-ray baggage scanner, but its model code and content do not prove any specification for the STXR-8065A.
Choose between models using the items to be screened, usable tunnel clearance, conveyor load, site dimensions, electrical compatibility, documented imaging data, supplied accessories and after-sales scope—not the product image or price alone.
The available matched datasheet presents it as a single-energy X-ray inspection system for briefcases, carry-on baggage and small cargo parcels. The exact current supplied configuration must be identified in the written quotation.
The matched datasheet states 805 × 655 mm, width × height. Confirm usable clearance with representative items because lead curtains, conveyor position and irregular shapes can affect fit.
No. The available datasheet lists AC 220 V, 60 Hz, while Bahrain’s official supply is 230 V, 50 Hz. Require a current model-specific document and nameplate confirming a suitable 50 Hz configuration before supply or installation.
The available legacy document refers to Windows 7; it is not evidence of a current supported configuration. The quotation should state the supplied version, licence, support status, update responsibility and any network restrictions.
The displayed product price does not define those services. The written quotation should itemise delivery, unloading, installation, commissioning, acceptance testing, training, accessories, warranty and maintenance.
Request legible model-specific reports that identify the unit, test method, dose and leakage units, applicable standard, issuer and scope. A generic statement or logo does not prove approval for a Bahrain project.
Bahrain’s National Portal lists services for radiation-emitting devices. Confirm the current import, use, facility, operator and documentation requirements for the exact unit and project with the competent authority.
They are not confirmed as included by this page. The quotation should list every included item and distinguish it from optional equipment.
No such capability is claimed on this page. Do not assume automatic material or threat detection unless the exact supplied feature, test method and model-specific evidence are provided.
For a useful quotation, send the intended item type, maximum item dimensions and weight, estimated daily volume, operating hours, required quantity, Bahrain city or business area, available electrical supply and frequency, installation-route constraints, required accessories, support expectations and target date.
Do not send restricted floor plans, detailed security procedures, access credentials, scanned X-ray images, unnecessary personal data or a precise restricted-site address in the first enquiry.
If email does not open, use the Technology Valley contact page.
